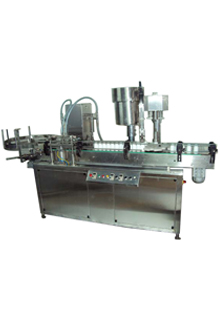

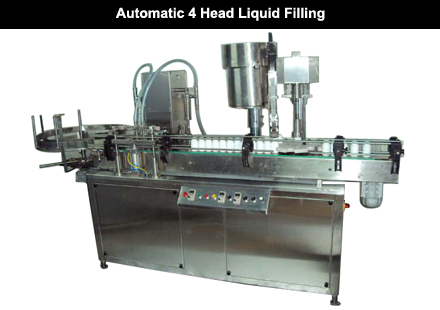

Automatic 4 Head Liquid Filling & Single Capping Machine

Model : MELBF-100 (MONOBLOCK)

Salient Features:
  • All contact parts made of SS316 material with easy removal system for Autoclaving/Sterilization/Cleaning.
  • Machine construction in SS 304 material.
  • Filling Nozzle with self-Centering Device.
  • S.S. Slat Conveyor.
  • “No Bottle No Filling Systems”
  • Diving Nozzle for Foam free filling.
  • Very High Fill Accuracy.
  • Automatic In-feed Turn Table for Automatic In feed of bottles
  • Variable AC Frequency Drive for speed adjustment.
  • Less-space required Low cost & Low consumption of power. No chance of foreign particles in the bottles as there is no travel of bottles between filling and sealing.

Technical Specification :

Production Rate :
30 to 80 Containers/Min (MELBF 100) Depend on size.
Input Specification :
Container Dia:
25mm to 90mm
Container Height:
36mm to 300mm
Power Specification :
1.5 H.P., 3 Phase or 1 phase, 4 Wire System, 50 Hz.
Filling Range :
10 ml to 1000 ml with the help of suitable change parts.
Optional Accessories :
Programmable Logic Control (System) with MMI
Aluminum profile cabinet covering full machine
Overall Dimension :
2300mm (L) X 900mm (W) X 1680mm (H)
Net Weight:
650 Kgs
Gross Weight:
900 Kgs.
