100 Holes

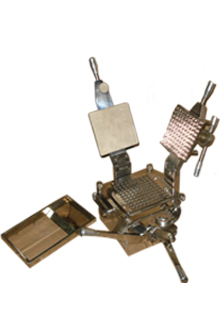

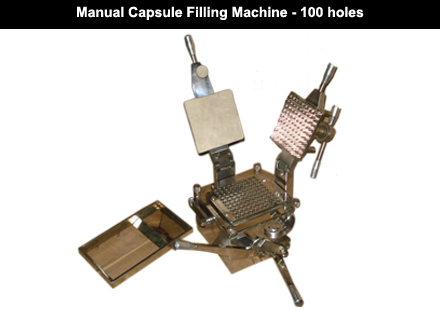

100 Holes Manual Capsule Filler is most versatile manual capsule filler suitable for all classes of manufactures providing powder filling machines, capsule filling machines etc.

It combines GMP design and construction. The equipment is simple to operate with no variation and with negligible rejection. Machine is fabricated from high quality matt finished stainless steel.

Though all the operations are manual, the machine calls for precision machined components & assembled with highly skilled personnel.

The manual capsule filler is widely uses in research laboratories, academic institution and medium to small scale manufacturing industries.

Silent Features :

• Functional design for simplified operation & precise results.
• Compact Design, sturdy & easily movable.
• Machine can be easily dismantled and reassembled even by unskilled person.
• All contact parts made from Stainless Steel 304 materials.

Technical Features :

Model	MECFM-100
Production Output:	20000 to 24000 capsules / 8 hour shift
Loading Plate:	10 X 10 = 100 holes
Interchangeability:	00/0/1/2/3/4/5 size capsules
Length:	375mm
Width:	280mm
Height:	400mm
Net Weight:	20 kgs Approx.
Gross Weight:	30 kgs. Approx.
