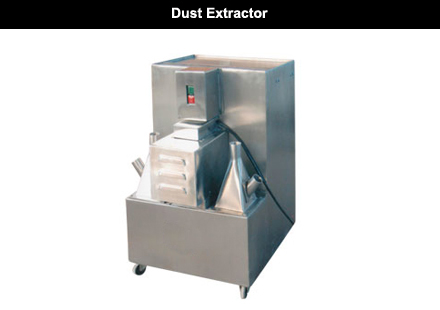

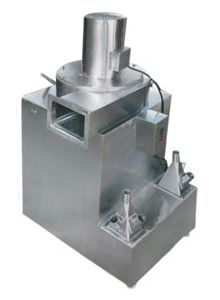

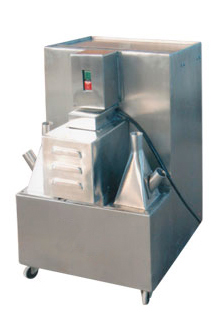

Dust Extractor

Salient Fetures:
  • Flexible for special applications for lighter process dust problem
  • Dust weighed down air enters the collector through an expansion chamber, where heavy dust partials are deposited by gravity.
  • The finer dust passes upward through a single large orifice and is finally collected by a multiple sleeve fabric filter, the top of which is attached to a highly effective snap action shaking mechanism, operated by a handle manually on the back side of the unit/equipment.
  • On shaking the dust is deposited into a drawer for easy disposal
  • The fan is directly connected into a electic motor.
  • Cleaned air is handled by the fan which discharge vertically
  • Provided with stainless steel 304 contact parts. SS 316 contact parts.
  • Blower fan is dynamically balanced
  • Castor wheel provided for ease in mobility.
  • Large door is provided to inspect the fan and filter.
  • Can be customized with 500 CFM or more as per requirement


Technical Specification:


Model ME-DE-150 ME-DE-300
Fan Volume (CFM) 150 CFM (250 m3/Hour) 300 CFM (500 m3/Hour)
Filtration Area 0.84 m2 1.34 m2
Dust Storage Capacity 25 Liters 40 Liters
Electric Motor 1 HP / 3 Phase 1 HP /3 Phase
Dust Extractor Machine
