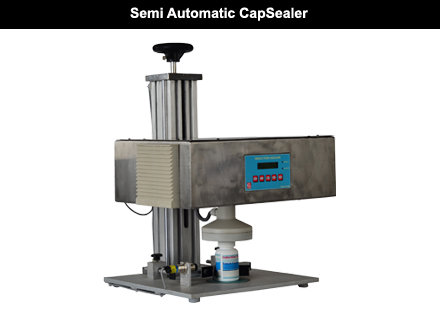

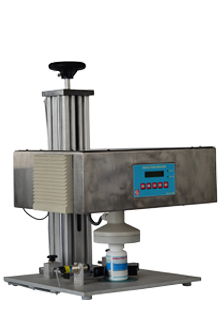

Semi Automatic Induction Cap Sealing Machine

MES-500

MES-500,Semi-Automatic Induction Cap Sealer is specifically designed for packagers who require a semi-automatic sealing process with low production volumes. The table top model is compact and ideal for production environments where a bottle conveyor is not practical. Built-in guides ensure operators properly line-up containers for sealing. A digital timer lets the operator know when the sealing process is completed. This model is suitable for batch type production and can be used continuously for 24hrs x 365 days Ideal for laboratory use, stability testing, R & D facilities, short runs test marketing.

Benefits:
  • User friendly: No tuning, no tool.
  • Continuous use: Rugged, built to last.
  • Fast, easy set-up, no moving parts.
  • Lightweight design for easy mobility.
  • Safe, reliable and compact.

Features:
  • Advanced Mosfet /IGBT technology Delivers high efficiency sealing power and long term reliability.
  • Sealing head slide mount provides hands-free sealing head operation and eliminates operator fatigue from holding sealing head.
  • Sealing time in 1/10 second increments.
  • Batch count and batch preset.
  • Total number of bottles sealed.
  • Programmed recipes and menus allows quick/easy adjustments between applications.
    Compact size.
  • LED display screen with touch buttons for easy use.
  • Visual and audible alarms.
  • Handle provides portability with skid-free non-marring feet for use anywhere.
  • Automatic photoelectric switch under sealing head eliminates the need for finger switches to start sealing cycle.
  • "V" stop centering guide for assurance of bottle being under sealing head.
  • No tools are required for adjustment or set-up.
  • It requires no water and is 100 % air cooled.
  • It is silent and has no discharge.
  • Digital UP/Down timer: Provides precise timing from 0.1 to 9.9 seconds.
  • Can seal PET / HDPE / PP / LDPE / PVC / GLASS containers.
Technical Specifications:

Input power 230 V, AC, 50 Hz
Output power 500 watts maximum
Can seal foil caps up to 8 to 10 bottle/minute
Cap size 20 mm -120 mm
Dimension 400 mm x 340 mm x 690 mm (LXBXH)
Weight 23 Kg Net / Packed : 40 kg
