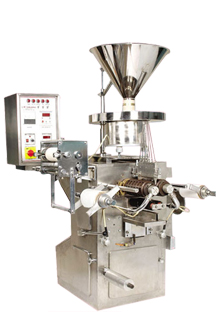

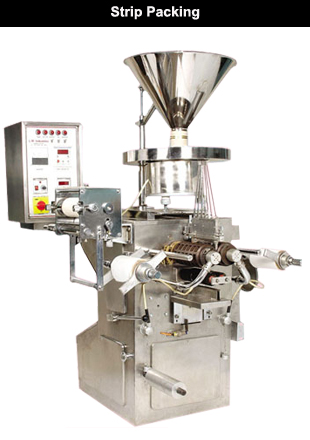

Strip Packing

Mega Automatic high speed packing machine with a capacity up to 2500 tablets per minutes. In strip packing machine wide range of products can be packed automatically / semi automatically.

To operate the machine is very simple. The product is fed through hopper and feeding device flows to the heat sealing roller cavities, the desired laminated foil from the two rollers is drawn on the sealing rollers which packs and seals the products continuously.

The sealed strip passes through the vertical and horizontal cutters to get desired strip sizes.

Application:

Strip packing machine is extensively used to pack tablets, capsules, caplets, coated tablets, soft gelatin capsules. The same is also used to pack supari, tobacco, refills, battery cells, mats, bearings, oil seals, steel balls, chewing gum, tofees etc.

Features:
  • Suitable for most heat sealable foils like aluminum poly, glassine poly, paper poly etc.
  • All parts are standardised which ensures quick inter changeables
  • There are 5 different models, capacity ranging from 400 to 2500 tablets per minute.
  • Trouble free smooth operation.

Technical Data:

S.P.M. Model ME 2T ME 4T ME 6T ME 8T ME 10T ME 12T
Max. Foil Width 100 mm 150 mm 210 mm 245 mm 285 mm 310 mm
Output Per Minute 600 to 700 1200 to 1500 2000 to 2500 3000 to 3500 4000 to 4500 4500 to 4700
Overall Dimension Width with 1 meter Conveyor 1625 mm 1625 mm 1625 mm 1625 mm 1625 mm 1625 mm
Weight of Machine 500 Kg. 525 Kg. 550 Kg. 580 Kg. 610 Kg. 635 Kg.
Height with Hopper 1700 mm 1700 mm 1700 mm 1700 mm 1700 mm 1700 mm
Motor Drive (Variable) 1/2 HP 415 V Overall 1/2 HP 3 Phase 1500 mm 1/2 HP 3 Phase 1500 mm 1/2 HP 3 Phase 1500 mm 1/2 HP 3 Phase 1500 mm 1/2 HP 3 Phase 1500 mm
Auto Feed  <<<<< Cap, Tablet - Coated, Uncoated >>>>>>>>
