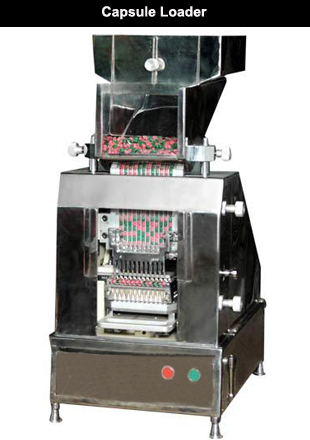

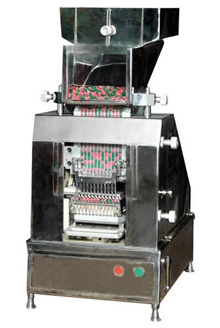

Model
MECL- V-23
(Vertical)
Output:
First 300
Hole plate
in 28 Seconds.
The vertical
Loader can
fill 2 or
3 Manual
Capsule
filling
Machine
trays depending
on the quality
of the capsule
and the
skill of
the operator
Drive: 0.25
HP 3 Phase
50 Cycles
Deminsions
: 630MM
(L) x 490
MM (W) x
985 MM (H)
Weight :
100 Kgs
The Base
and the
covering
of the machine
is fabricated
from stainless
steel 304
quality
duly polished.MECL
Model
|
Operations:
- Fill
Hopper
with
empty
capsules
- Place
hand-filler
loading
tray
with
guide
on the
sliding
base
plate.
- Swithch
On:
The
capsules
automatically
get
nested
in the
tray,
cap
up and
body
down.
Time
taken
for
loading
300
capsules
in 300
Hole
tray
in 28
seconds
in vertical
loader
(Model
MECL
V -28)
and
14 Seconds
in Horizontal
Loader
( Model
MECL
H-14)
Interchangeability:
- Interchangeable
parts
can
be supplied
for
all
size
: 00,0,1,2,3,4
&
5 capsules.
Unique
Features:
- Low
investment,
High
Output
- Simple
to operate.
Can
be handled
by semi-skilled
personnel.
- Easy
removable
parts.
Spares
Readily
Available.
- Sturdy
Fabrication
–
assured
durability
and
long
service.
- Designed
to Fill
all
standard-size
capsules
- Excellent
Cost
Benefit
Ratio.
|
|
