Fully Automatic Capsule Filling Machine

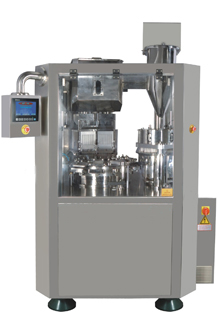

ACFT- 150 Fully Automatic Capsule Filling Machine

Technical Specifications:
  • Model : ACFT-I50
  • Capacity : 1,50,000capsules / hr (powder) and 1,30,000capsules / hr (pellets)
  • Capsule size : "00eI" to "5"
  • Total Power 9.3kw (12.5 HP) (includes main drive,auger drive, vacuum pump & blower motors)
  • Electricitysupply 440 V / 3 Ph / 50 cycles; 380 V / 3 Ph / 50 cycles; 220 V / 3 Ph / 60 cycles (as per customer requirements)
  • Vacuum : 500 mm of Hg @ 1000 LPM
  • Compressed air : 8 CFM / 200 LPM at 100 psi / 6 kg/cm2
  • Relative humidity : 40-45% RH
  • Room temp : 22 -25 C
  • Weight : 2500 kg.(Approx.)
  • Floor space area with height : 1930x 1830x 2235 mm ht
  • Total dimensions of machine when all acrylic doors are open : 3100x 3100x 2235 mm ht.
  • Total height of machine when powder hopper is lifted at it's full height : 1930x 1830x 2540 mm ht
