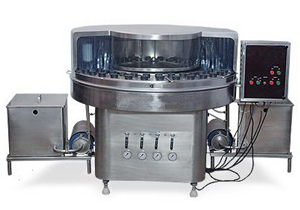

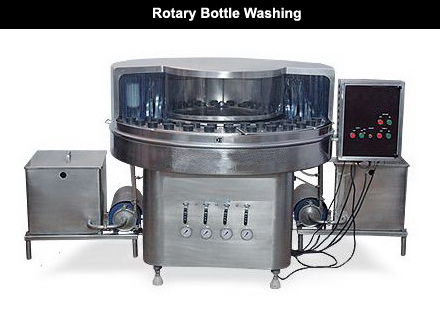

Semi Automatic Rotary Bottle Washing Machine

Model : ME-BW-64

Salient Features:
  • Geneva mechanism.
  • Four inner, one outer and one air wash.
  • Sequence of washes of washes to customer’s choice.
  • Stationary nozzles eliminate contamination of water cycles.
  • Easy loading and unloading with two rows.
  • Individual solenoid valve for each washing sequence.
  • Pumps and tanks are mounted on parable stand for easy maintenance.

Technical Specification :

Production Rate: 50 to 60 Containers/Min.
Input Specification:
Container Dia: 25mm to 100mm
Container Height: Up to 280mm
Power Specification: 1 H.P., 3 Phase, 4 Wire System, 50 Hz
Filling Range: 10 ml to 1000 ml with the help of suitable change parts.
Optional Accessories: 2 Pumps - Pumping Station
  Electric Heater Tank
Utility:
Fresh Water: 900 Liters/Hour
DM Water: 300 Liters/ Hours
Air: 30 CFM @ 5 bar (5 Wash)
Overall Dimension : 1550 mm (L) X 1700 mm (W) X 1300 mm (H)
Net Weight: 350 Kgs.
Gross Weight: 550 Kgs.

Basic Unit:


Semi-Automatic Rotary Bottle Washing Machine Model: MEBW-64 with Two Nos. S.S. Tanks and Pumps with PP Filters housing and cartridge.
Basic unit with following attachments:
  • Any one bottle neck size pockets
  • SS Tanks and Pumps
PP Filters housing with cartridges

Change Parts:
  • Nylon Bottle Pockets (64 Nos.)
(In case change of Bottle neck Dia.)
