Blister Packing Machine

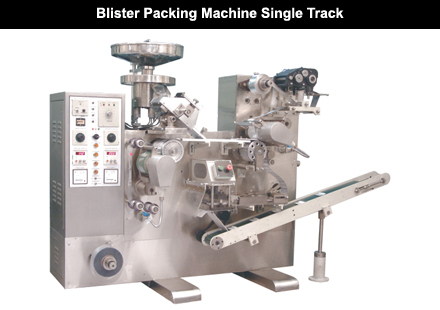

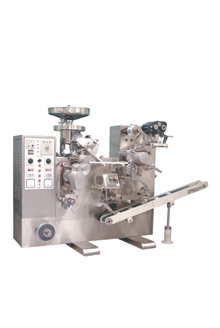

Blister Packing Machine Single Track

Technical Specification:

Model ME- 150
PVC base film max 124 mm
PVC film thickness 0.25 mm
PVC reel dia max 440 mm
Aluminium foil width max 120 mm
Aluminium foil thickness 0.02 mm / 0.03 mm
Aluminium reel dia max 220 mm
Total forming area min 25 mm x 110 mm
max 100 mm x 110 mm
Advance length 100 mm
Pack length punched out 110 mm
Pack width punched out 100 mm
Forming depth max 10 mm
Output Max. 150 packs per min
(Depends upon pack size and
product dimensions)
Electrical consumption 4.5 KVA. without air compressor

Shipping dimensions for basic machine :

Dimensions Net. Wt GR. wt
82" x 45" x 70" 950 kg 1200 kg

"It is recommended that the machine is installed in air conditioned premises having room temprature of 220 c to 260 c to ensure efficent working"

Note: Specifications are indicative and we reserve the right to modify them without prior notice. Accessories shown in the picture are not part of standard equipment.
