Tabletting Machines

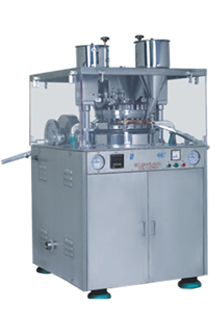

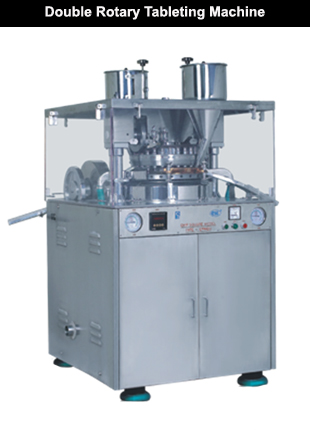

Double Rotary Tableting Machine GMP Model

In compliance with cGMP guidelines
Output up to 226,800* Tab/Hr (Max)
Main compression pressure up to 100 kN
Higher turret speed up to 42 RPM
Variable speed pulley
Gravitational feed frame
Interlocking at Upper Gauards
Dust Nozzle with clamp
Force feeder with variable frequency drive (optional)
PLC system (optional)


Models ME 3B-27 ME B3B-27 ME B3B-35 ME B3B-45
Tooling "D" "B" "B" "BB"
No. of Stations 27 27 35 45
Max. Output (Tab/Hr)* 136,080 136,080 176,400 226,800
Max. Pressure 10 Tons 6.5 Tons 6.5 Tons 6.5 Tons
Max. Tablet Dia 25 mm 16 mm 16 mm 11 mm
Max. Depth of Fill 20 mm 17 mm 17 mm 17 mm
Electricals 5 HP, 3 Ø, A.C. 3 HP, 3 Ø, A.C. 3 HP, 3 Ø, A.C. 5 HP, 3 Ø, A.C.
Electricals with A.C. Drive 7.5 HP 5 HP 5 HP 7.5 HP

*The max. Attainable output is depending upon the following factors.
  1. The physical and chemical properties of material to be compressed
  2. The tablet shape, weight and its thickness
  3. Ambient Condition
  4. Operator skills etc.
