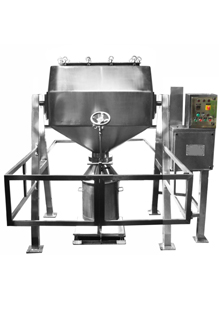

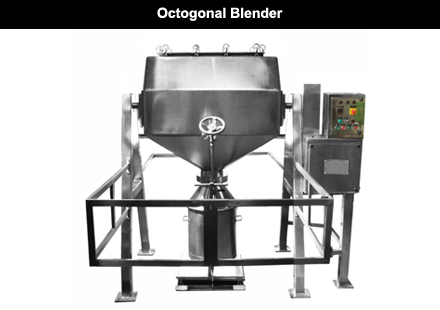

Octogonal Blender

Octagonal Blender, due to its octagonal shape is designed to process larger volume of material.It occupies less space compared to other similar blenders like `V' and Double Cone. Power consumption is also less the blending takes place at low speed during operation.It is well balanced even in higher capacities.

Salient Features:
  • Octagonal Blender is supplied with a bin charging system or can be designed for vacuum charging.
  • It is a very useful machine for pharmaceutical industry wherein gentle blending of dry granules of powders is to be done.
  • It is a slow speed blender and has a removable baffle mounted through a rectangular openable lid. Other important feature of this machine is ease of cleaning in place.
  • The bin charging system can also be incorporated in it, which is a dust free closed system for charging and discharging of powders or granules.
  • The power consumption is comparatively lower than the other similar type of blenders.
  • Capacity available 175L to 2800L.

Application:
  • Dry powder mixing for tablets and capsules formulations.
  • Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet granules. .

In compliance with cGMP guidelines
Effective blending with help of mixing baffles.
Quick Dismantling of mixing baffles for easy to clean bins and baffles.
Fully Automatic Operation through Programmable Logic Controller (Optional)
Flameproof Construction (Optional)


Model MEOB 50 MEOB 100 MEOB 200 MEOB 300 MEOB 500 MEOB 800 MEOB 1000 MEOB 1200 MEOB 1500 MEOB 2000
Gross Capacity (Ltr) 50 100 200 300 500 800 1000 1200 1500 2000
Working Capacity (Ltr.) 35 70 140 210 350 560 700 840 1050 1400
Machine RPM (Max.) 28 28 24 24 16 16 16 16 16 12
Discharge Port Ø 3" Ø 4" Ø 6" Ø 6" Ø 6" Ø 8" Ø 8" Ø 10" Ø 12" Ø 12"
Main Drive Motor 1 1 2 2 3 5 7.5 7.5 7.5 10
Power Supply 415 V ± 10 % , 3 Phase, A.C.
Note: “v” shape blenders (50 ltrs - 2000 ltrs), Double Cone Blenders (50 ltrs - 2000 ltrs) &
Cage Blenders (50 ltrs - 1800 ltrs) are available on request.
