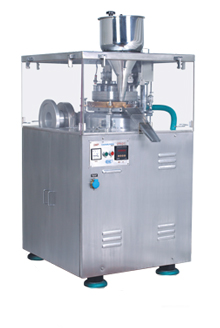

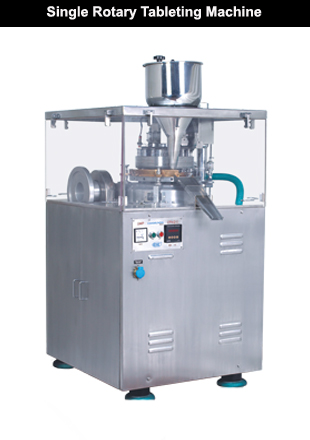

Single
Rotary Tableting
Machine
GMP Model
In
compliance
with cGMP
guidelines
Output up
to 57,960*
Tab/Hr (Max)
Main compression
pressure
up to 100
kN
Higher turret
speed up
to 42 RPM
Variable
speed pulley
drive
Overload
pressure
release
arrangement
Interlocking
at Upper
guards
Dust nozzle
with clamp
Auto Lubrication
(optional)
| Models |
ME-12 |
ME
D3-16 |
ME
D3-20 |
ME
D3-23 |
| Tooling |
Special |
"D" |
"D" |
"D/B" |
| No.
of
Stations |
12 |
16 |
20 |
23 |
| Max.
Output
(Tab/Hr)* |
15,840 |
40,320 |
50,400 |
57,960 |
| Max.
Pressure
(Tons) |
12 |
10 |
10 |
10 |
| Max.
Tablet
Dia
(mm) |
40 |
25 |
25 |
16 |
| Max.
Depth
of
Fill
(mm) |
30 |
20 |
20 |
17 |
| Electricals |
3
HP,
3
Ø,
A.C. |
2
HP,
3
Ø,
A.C. |
2
HP,
3
Ø,
A.C. |
2
HP,
3
Ø,
A.C. |
*The max.
Attainable
output is
depending
upon the
following
factors.
- The physical and chemical properties of material to be compressed
- The tablet shape, weight and its thickness
- Ambient Condition
- Operator skills etc.
|
|
