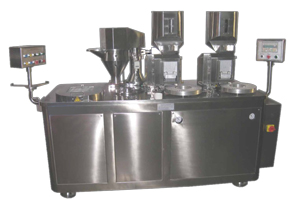

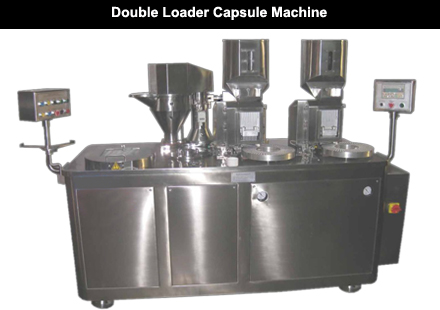

Semi Automatic Capsule Filling Machine

SACF-DLN

Mega semi automatic capsule filling machine, model SACF-DLN is used for filling a vide variety of formulations in hard gelatin capsules. Designed and manufactured to the latest standards, the machine is operator friendly and precision engineered to fill powders pellets & tablets.


Silent Features :
  • Automatic loading and filling minimises operator attention
  • Double loading station ensures higher output
  • Machine is operated through Programmable logic control (PLC) with display of various parameters
  • Four auger speed ensures handling any kind of powders from hygroscopic nature to fine free flowing powders
  • Special hopper design is easy for dismantling and cleaning
  • Safety electronic interlock ensures operator safety
  • Easy changeover of change parts (maximum of 15 minutes required for changing from one setting to another)
  • Complying to cGmp standards
  • Automatic closing and ejection of filled capsules ensures operator safely and minimises operator attention
  • Each Row of 12 Holes on Loading Ring
  • Light Weight Magnesium Loading Ring

Technical Specifications :

Model No. SACF-DLN
Capsule Size 00 to 5
Output 45,000 to 50,000 capsules / hr
No. of Loaders 2 Nos
Total Power 8 hp (includes main drive, loader, filling table &vacuum pump)
Electric Supply 440V, 3 phase, 50 Hz
Vacuum 50mm / 20" of Hg at 1000 LPM/ 30 CFM
Compressed Air 200 LPM/ 8 CFM at 100 psi 6-7 kg/cm2
Room Temperature 22 - 25 C
Relative Humidity 40-45% RH
Dimension (mm) (LxWxH) 2800 x 1200 x 1700

Optional Accessories :
  • A.C. drive for capsule loading, filling & auger speed adjustment
  • Pellet filling attachment
  • Tablet feeding attachment
  • Partial filling attachment
Capsule Size 00 0 1, 2, 3, 4, 5
Holes per Ring 480 600 720

Working :

The principle of working of SAF-DLN in three stations is explained below:

Capsule Loading Station I
In this station, capsules are fed, aligned and inserted into the holes in the ring Capsule separation takes place by vacuum. After orientation of capsule, capsuIe cap stays in upper holding ring and body stays in lower holding ring.


Capsule Loading Station II
Lower (body) holding ring is put on the rotary table and powder hopper will move over the lower (body) holding ring. The auger inside powder hopper starts to run and fills powder into the capsule body. Once lower holding ring turns one circle, powder hopper automatically will move to original position.


Capsule Loading Station III
Align upper holding ring and lower holding ring together. Capsule closing takes place and finished capsules get ejected automatically and will be collected in the container.
