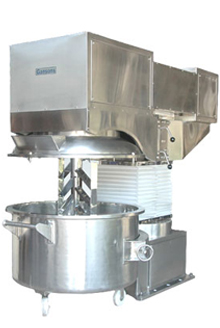

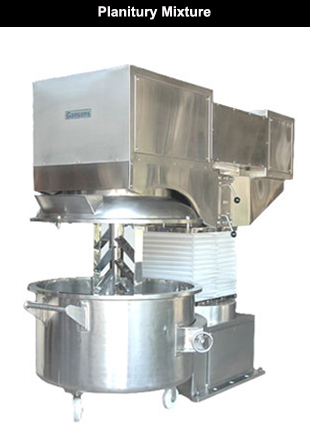

Intimate and homogenizer mixing of products is employed by planetary motion of beaters and centrally located homogenizer.

Equipments ideally suitable for through mixing of ointments, creams, lotions, tooth paste etc. in sterile or non-sterile conditions.

Product container provided with jacket to heat and cool for circulation of steam/cold water. Mixer is also designed to operate under vacuum to remove air entrapment in product during mixing .

High speed disperser suitable for homogenizing the product with independent drive at the centre.


Applications:

Ointments, Creams, Ceramics, Ink Pastes, Colour, Pigments Rubber, Compound & Adhesives.

Special Features:

• Product bowl mounted on castor wheels for easy portability, washing & transporting mixed materials.
• Jacketed bowls available for heating or cooling of products during mixing
• Provision to mix materials under vacuum for duration purpose.
• Double beater open type to cover full cross section of products in bowl.
• For ointments, paste, cream, lotion etc. high speed emulsifier provided for homogeneous mixing and to produce luster product.
• Scrapper of suitable design to avoid localized heating or cooling & ensure uniform mixing.
• Flameproof construction optional
• Motorized drive assembly for lifting and lowering.
• Needs comparatively smaller area for installation.
• Electrical control panel with back up fuses and indicator lamps for easy process control
• Contact parts of SS 304 Q material. SS 316 construction optional.
• Higher capacities models 1000 L. to 1500 L on request

Technical Data :

MODEL	PLM 200 VJHSE	PLM 350 VJHSE	PLM 600 VJHSE
Gross Capacity	220 L	380 L	650 L
Bowl Dia in mm	750	900	1100
Bowl HT. in mm	540	600	700
Main Motor HP	5.0	10.0	15.0
Lifting Motor HP	1.0	1.0	2.0
Emulsifir Motor HP	3.0	5.0	7.5
Overall Dimem. In mm	1100 X 2300 X 2450	1350 X 2700 X 2600	1600 X 2775 X 2900
Net Wt. kgs.	1600	2000	3000
Gross Wt. kgs	2200	2750	3750
