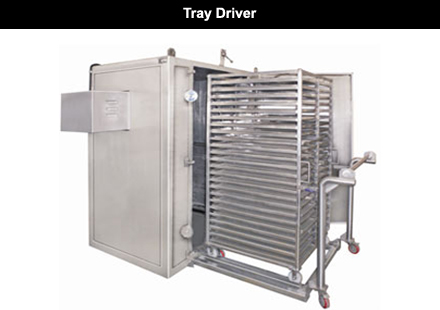

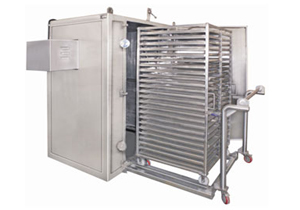

General
Specifications
Construction
:
External
: 2MM Thk,
Internal
: 2MM THKMOC:
cGMP
Surface
Finish:
External:Buffed
to 150 grit
matt finish,
INTERNAL:
Buffed to
220 grit
mirror finish.
Inlet
& Outlet
:
All dryers
have a 5
micron prefilter
at the inlet
and a manually
infinite
adjustable
damper at
the outlet.
|
Door
:
Door is
provided
at the front
and / or
rear side
of the tray
dryer. Door
lips are
lined with
silicon
rubber gasket
to prevent
any leakages.
Suitable
locking
is provided
for the
doors.
Air
Circulation
:
Air circulation
is done
by specially
designed
recirculation
blowers
inside the
tray dryer.
The blower
capacity
, static
& design
depends
on the size
and model
of dryer.
Heating
:
Dryers are
normally
supplied
with either
steam/ electric/
thermic
fluid /
hot water
heating
system.
Suitable
heating
coils /
caloriefiers
are provided
in the dryers.
Temprature
Control
:
Temp control
system is
done by
electronic
digital
temp controller
fitted in
the control
panel. The
temp control
in the dryer
is fully
automatic.
Trays
:
Trays are
available
in S.S.
304/ 316
q. All trays
are fully
die pressed
and with
cooved corners.
Trays are
buffed to
mirror finish.
Trays are
also available
in aluminium
/ Polypropelene
/ Frp/ M.S.
galvanized
as per clients
reqiuirements.
Trolley
:
Trolley
is provided
in the dryers
to accommodate
trays in
it. Trolley
truck are
used to
load and
unload the
trays into
the dryer.
Control
Panel :
Automatic
Control
panel is
fitted on
the side
of the dryer.
If consists
of starters,
contactors,
safety relays,
ckt breakers,
indicating
lamps, push
buttons
, timers,
controllers
etc.
|
