Blister Packing Machine

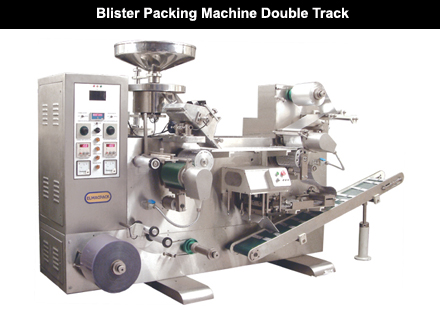

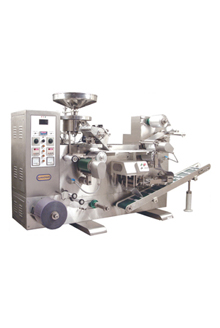

Blister Packing Machine Double Track

Salient Features :
  • Shorter change over time.
  • Higher output
  • Utmost simplicity in operation and maintenance
  • Stainless steel cladding conforming to cGMP standards


Optional Features :
  • Separate punching and perforation station.
  • Print registration control facility.

Technical Specification:

Model
ME - 2000
PVC base film
Max 218 mm
PVC film thickness
0.25mm
PVC reel dia
max 440 mm
Aluminium foil width
max 214 mm
Aluminium foil thickness
0.02 mm / 0.03 mm
Aluminium reel dia
max 220 mm
Total forming area
Min 25 mm x 200 mm
Max 100 mmx 200 mm
Advance length
100 mm
Pack length puched out
200 mm
Pack width puched out
100 mm
Forming depth
16 mm
Output
Max 300 packs per min
(Depends upon pack size and
product dimensions)
Electrical consumption
8 KVA. without air compressor


Shipping dimensions for basic machine :

Dimensions Net. Wet GR. Wt.
105" x 48" x 72" 1250 kg 1600 kg

"It is recommended that the machine is installed in air conditioned premises having room temprature of 220 c to 260 c to ensure efficent working"

Note: Specifications are indicative and we reserve the right to modify them without prior notice. Accessories shown in the picture are not part of standard equipment.
