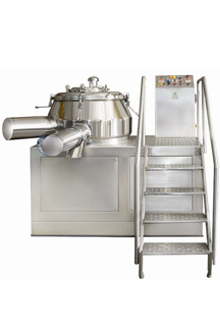

RMG (Rapid Mixer Granulator)

Dome Shaped bowl which helps the products in to whirling motion with the help of impeller for the better mixing. Inclination of the impeller gives the rising and tumbling motion of the product in the bowl due to the impeller blades of two full and two half solid blades.

Specially designed chopper blade with high speed and uniform granulation through out the product inside the bowl.

For the easy discharge of the product auto discharge with pneumatic system is provided which can be directly discharge in to the FBD bowl.

Salient Features :
  • Unit is designed to meet the requirement of cGMP System
  • Precision engineering to minimize clearance between bowl and the impeller
  • Safety measures has be taken care for easy operation
  • Discharge can be give any side to suit the requirements

Optional Features:
  • Machine can be supplied with FLP on request
  • Material handling device can be provide for loading of the material
  • CIP system can be provided

In compliance with cGMP guidelines
Modular Design
Mixing of substances uniformly and homogeneously with special design Mixer & Chopper blades.
Electro-Pneumatic Operated Discharge
Effective sealing
Easy to clean machine
Fully Automatic Operation through Programmable Logic Controller (Optional)
Binder addition system (Optional)
Inline co-mill for uniform granuals. (Optional)
Flameproof Construction (Optional)

Model MERMG
25
MERMG
50
MERMG
100
MERMG
150
MERMG
250
MERMG
400
MERMG
600
MERMG
800
Gross Capacity (Ltr) 25 50 100 150 250 400 600 800
Working Capacity (Ltr.) 20 40 80 120 200 320 480 640

Mixer Motor (HP)

3/5 5/7.5 7.5/10 10/15 22.5/30 30/40 40/50 50/60
Chopper Motor (HP) 1.5/2 2/3 2/3 2/3 3/5 5/7.5 7.5/10 10/15
Compressed Air Pressure (bar) 6
Power Supply 415 V ± 10 %, 3 Phase, A.C.
