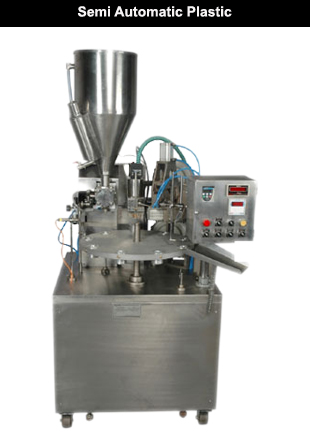

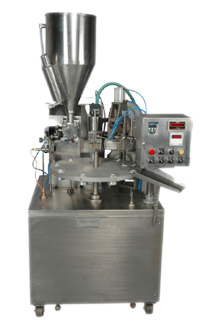

Single Head Tube Filling Machine - Plastic Tubes

ME 300 PL

ME 300-PL is a simplified compact rotary designed, single-headed filling & sealing machine. Suitable for an output upto 30 tubes per minute, handles Plastic - Polyethylene, Polyfoil and Laminated type of tubes.

Manual lodging/in feeding of tubes, filling sealing-coding and trimming operation are performed prior to tube discharge similar to the automated version.

Minimal maintenance intervention, accommodating in less then 1/2 square meter space.

A perfect blend between quality components and economical cost, thus rightly meets the needs of a Lab, R&D or Promotional production of an entrepreneur to a mid sized companies.

Main Features:
  • Rotary 8 stn turret with adjustable height.
  • Covers and claddings, Contact parts in SS 316L built to meet the cGMP Standards
  • Filling accuracy ±1% with the help of Positive filling nozzle & Pneumatic cut off system
  • No tube No fill Mechanism
  • Easy dismantable of parts, enabling faster changeover with few size parts.
  • Basic controls
  • Production speed : Upto 1,800 tubes /hr.
  • Filling Range : 3cc to 250cc
  • Tube dia : 10 – 50mm (Min – Max)
  • Closures System
  • Energy efficient, compressed Hot Air Sealing with Water Cooling System
  • Sealing – Mechanical & pneumatic combination sealing unit
  • Ancillary / Optional equipment
  • Variant seal design, half moon seal and more
  • Photo registering of ‘I” mark positioning
  • Tube Cleaning by compressed air & vacuum suction
  • Jacketed hopper and fill level controls
  • Agitator
  • Both side coding
  • Pre and post gas flushing
  • Dry air and chiller unit
  • Quick release handles and position indicators for faster change over
  • Acrylic guarding
