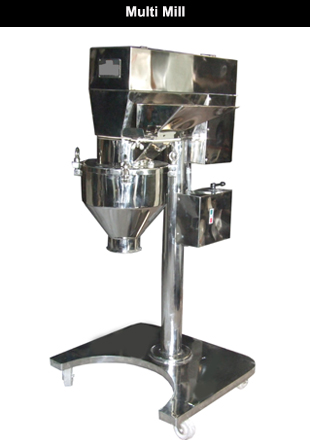

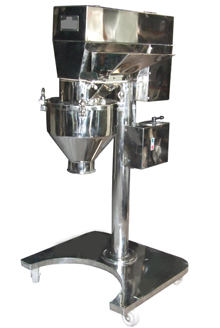

Multimill
is used
for high
speed granulating,
pulverizing,
mixing,
shredding
and chopping,
etc of a
wide range
of wet and
dry materials
without
special
attachments.
As compared
to the four
common principles
of size
reductions
i.e. grinding,
compression,
impact and
shearing,
which often
do not produce
controlled
size reduction,
this machine
utilizes
the principle
of variable
force swing
hammer blades
having both
knife and
impact edges
rotating
with a carefully
selected
screen to
control
size reduction.
Flow path
of material
in vertical
rotor machine
is streamlined.
During Communition,
material
entering
the chamber
travels
to the periphery
and passes
through
the screen
tangentially
and radially
avoiding
chocking
and temperature
rise.
|
Salient Features:
- Machine
Portable
on castor
wheels
- High
output
with
process
uniformity
- Machine
rated
for
continous
opeation
- All
contacts
parts
SS 304
AISI
Quality
( SS
316
Quality
Optional)
- Direction
of blade
rotation
by reversing
switch
- Various
combinations
of screens/speeds/number
of blades/direction
of rotation
of blades,
can
be selected
- Higher
screen
opening
area
for
higher
output
- All
contact
parts
can
easily
be dismantled
and
clean
for
change
of product
- Wide
range
of SS
perforated
and
wire
knitted
screens
available
- Dust
free
operation
- Additional
perforated
screen
at the
bottom
of pulverizing
chamber
to eliminate
higher
percentage
of fineness
and
control
granule
size
more
effectively
and
obtain
higher
outputs.
Direction
of beaters
can be changed
by reversible
switch.
Machine
is designed
for continuous
operation.
Cylindrical
screen for
higher output.
Castor wheels
provided
for mobility.
Flameproof
electrical
components
can be provided
at extra
cost.
Beaters
and scraper
blades of
S.S. 304
material.
All contact
parts can
be easily
and quickly
dismantled
and cleaned.
S. S. Perforated
Screens:
(Optional)
0.5, 1.0,
1.5 mm Hole
Dia.
2, 3, 4,
5, 6 mm
Hole Dia.
7, 8, 10,
15, 20,
25 mm Hole
Dia.
S. S. Wire
Mesh Sieve:(Optional)
4, 6, 8,
10, 12,
14, 16,
20, 24,
30, 40,
50, 60 Mesh.
80, 100
Mesh.
| Models |
ME-MM |
| Output |
50
to 200
Kg/Hr |
| Rotor
Speed |
750/1500/2300/3000
RPM |
| Screen
Dia |
ID
260
mm x
HT 135
mm |
| Charging
Height |
1445
mm |
| Discharging
Height |
730
mm |
| Electricals |
3
HP,
3Ø,
A.C. |
| *
Depending
on the
product
&
screens/size
and
reduction
required
in size |
|
|
